Portable Computer Terminal Products

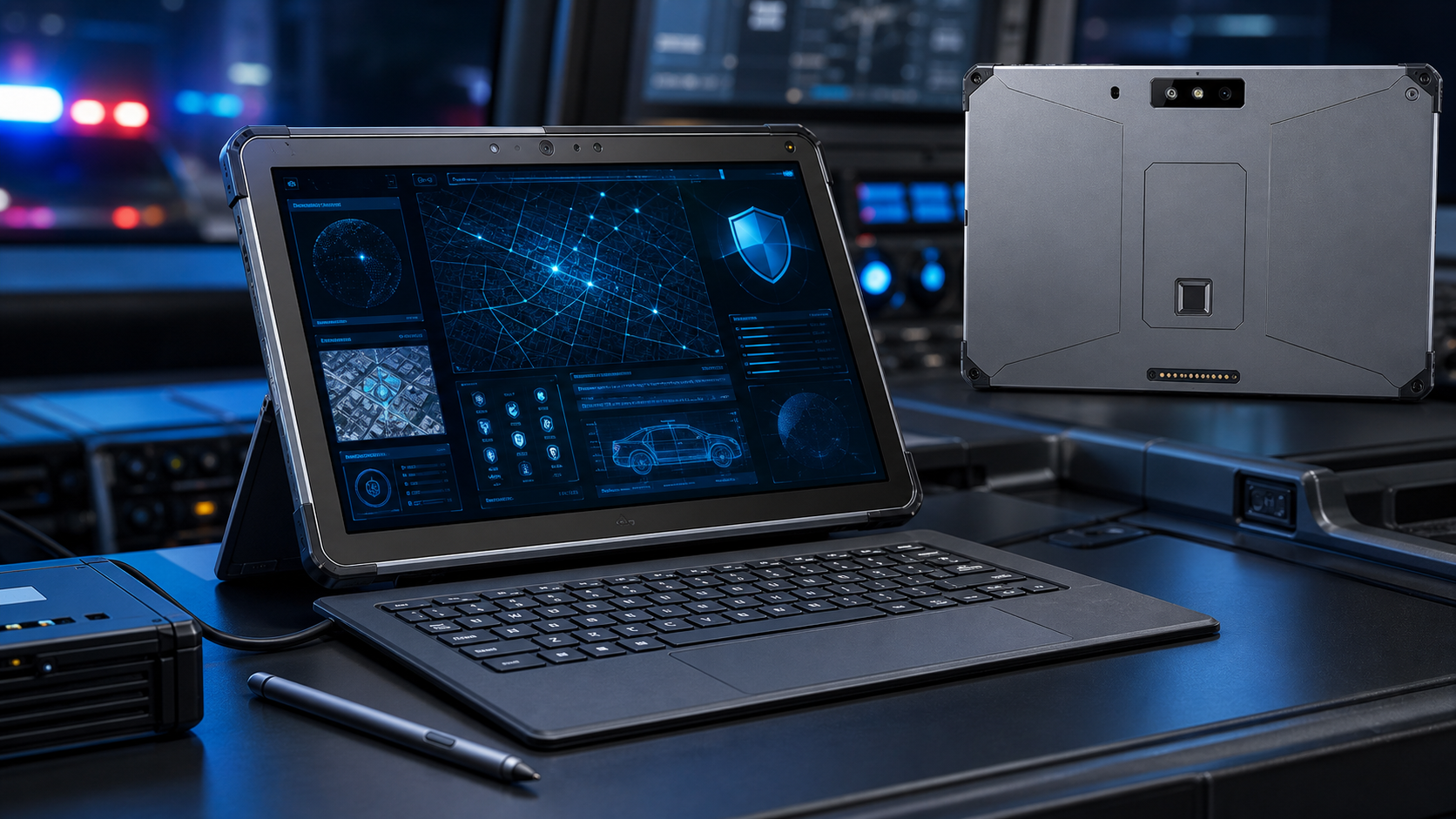

X6 Tablet PC

The X6 is a 2-in-1 portable computing device that functions as both a tablet and a PC. With its ultra-slim design and built-in mobile communication module, the X6 brings a new level of efficiency to mobile office applications.

12-inch 2160 × 1440 touchscreenApprox. 860 g body weight and 11.1 mm thickness2-in-1 detachable keyboard for switching between laptop and tablet modes

Request a quote Request a white paper

Product overview

It features a 12-inch 2160 × 1440 touchscreen in a metal body, with a measured body size of 295.1 × 209.6 × 11.1 mm and an approximate weight of 860 g excluding keyboard and adapter. Equipped with a detachable magnetic keyboard, the X6 switches between tablet and laptop-style mobile work modes.

Core features

12-inch display in a thin metal body
Approx. 860 g body weight and 11.1 mm thickness
2-in-1 detachable keyboard for switching between laptop and tablet modes
Fingerprint module, hidden digital certificate interface, and encrypted SSD options
4G/5G stable connectivity: Built-in mobile communication options support efficient mobile office and field access.
Dual-system and dual-drive isolation: Physical isolation supports separation between private networks and the public Internet.
Natural handwriting and productivity: Stylus support, detachable keyboard, stand, HD touchscreen, and cameras support mobile work and document handling.
Security-oriented modules: Fingerprint module and hidden digital certificate interface support secure identity and access workflows.

Technical specifications

Processor

Intel i5-6200U, dual-core, 2.3 GHz up to 2.8 GHz.

Memory and graphics

8 GB LPDDR3; Intel HD Graphics 520.

Storage isolation

Drive 1: 128 GB / 256 GB encrypted SSD; Drive 2: 128 GB / 256 GB; optional physical hard-disk security isolation.

Display and touch

12-inch 2160 × 1440 display; 10-point touch.

Stylus

Active capacitive stylus with Microsoft touch protocol support, 4,096 pressure levels, tip service life equivalent to 20,000 meters or 20,000 uses, button durability of 100,000 presses, and contact accuracy ≤ ±0.5 mm (center), ≤ ±1 mm (edge).

Wireless

Wi-Fi IEEE 802.11abgn/ac/d/e/i/h/w; Bluetooth 2.1 to 4.2 BLE; optional 4G/5G module.

Camera

2 MP front camera; 5 MP rear camera with autofocus, EIS, and 1080p / 720p / VGA / QVGA support.

Audio

Speaker and digital microphone.

Security

Fingerprint module, internal USB security certificate key, encrypted SSD, and dual-system / dual-drive isolation options.

Interfaces

USB 3.0 × 1, USB 2.0 × 1, USB Type-C × 1, headphone, Nano SIM, DC charging, and dock connector.

Battery and body

7.6 V / 6000 mAh two-cell lithium polymer battery; 295.1 × 209.6 × 11.1 mm; about 860 g without keyboard and adapter; detachable magnetic keyboard and protective cover.

Tell us your deployment scenario, required interfaces, software workflow, and local integration needs. Contact us
