Intelligent Hardware Products

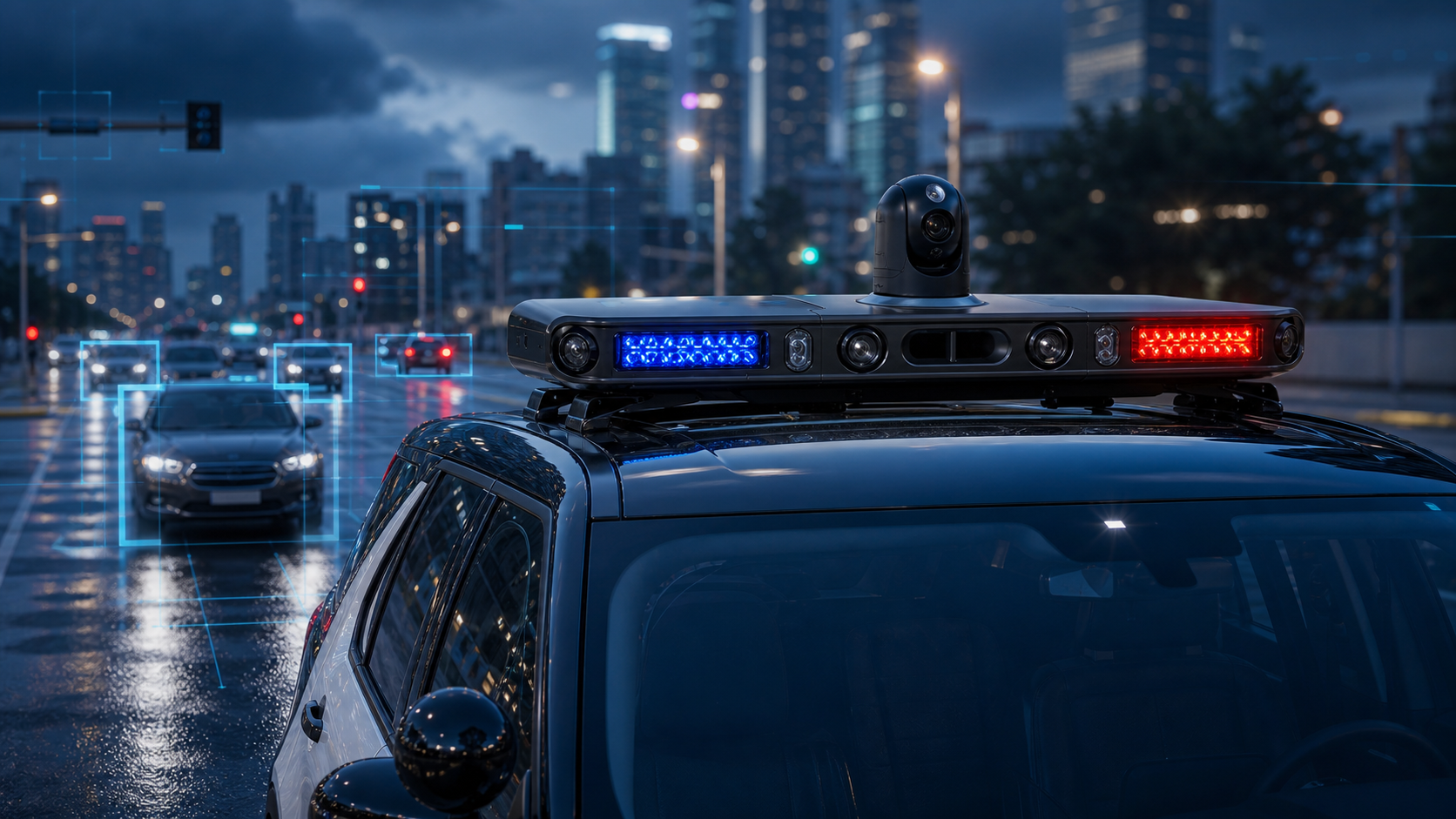

Intelligent Lightbar

The Intelligent Lightbar fully replaces the basic warning, siren, and public-address functions of conventional lightbars while integrating high-definition video capture, AI recognition, wireless transmission, GPS/BeiDou high-precision positioning, dynamic alerts, and information broadcasting.

Four built-in 4 MP HD cameras, one 360-degree 4 MP HD PTZ camera, and optional 9 MP speed-enforcement camera4G/5G full-network communication for real-time multi-channel HD video and image transmissionBuilt-in network video recorder (NVR) and evidence storage unit with 1 TB hard drive as standard

Request a quote Request a white paper

Product overview

Built with a proprietary multi-channel panoramic video acquisition architecture, multiple high-definition camera modules, and a zoom PTZ camera, the product provides 360-degree coverage with no blind spots. The 4 MP camera array and 4 MP PTZ camera support 2560 × 1440 HD capture, while the edge video unit supports 3840 × 2160 encoding and snapshot capability.

Core features

Four built-in 4 MP HD cameras, one 360-degree 4 MP HD PTZ camera, and optional 9 MP speed-enforcement camera
4G/5G full-network communication for real-time multi-channel HD video and image transmission
Built-in network video recorder (NVR) and evidence storage unit with 1 TB hard drive as standard
Optional GPS/BeiDou positioning, overspeed capture camera, millimeter-wave radar, and AI violation-analysis algorithms
Highly integrated all-in-one design: Combines lightbar, siren, fill light, LED text/graphic display, in-vehicle NVR, evidence storage, AI computing, video processing, positioning, and wireless transmission.
AI recognition and evidence capture: Built-in proprietary in-vehicle AI algorithms support facial recognition, license plate recognition, vehicle structure analysis, and traffic violation evidence collection.
Industrial-grade rugged protection: Dustproof, waterproof, shock-resistant, and wide-temperature design supports harsh global outdoor environments including rain, snow, sand, heat, and severe cold.

Technical specifications

Video functions

Supports preview, recording, playback, online transmission, and positioning; recording resolutions include 4K, 4 MP, 3 MP, 1080p, and 720p.

Positioning

Supports GPS, GLONASS, BeiDou / Compass, and Galileo.

Video input and storage

6-channel 2560 × 1440 network video input; built-in network video recorder (NVR) and evidence storage unit; 1 TB hard drive as standard.

Network and protocols

IPv6, HTTP, HTTPS, UPnP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS; ONVIF and RTSP third-party access.

Video compression

H.264 / H.265 video compression with hardware decoding and encoding support.

Edge AI computing

32 TOPS NPU; face recognition and license plate structured analysis; 8 GB DDR4; 32 GB eMMC; embedded Linux.

AI video performance

H.264/H.265 hardware decoding for 16 channels of 1080p at 25 fps; JPEG decoding and capture up to 3840 × 2160 at 80 fps; maximum encoding up to 3840 × 2160 at 60 fps.

Vehicle camera array

4 MP 2560 × 1440 at 25 fps camera modules with 1/1.8-inch progressive CMOS, 120dB WDR, ultra-low illumination, ONVIF / RTMP / GB28181 / RTSP / RTP / SNMP, and 10/100 Mbps adaptive Ethernet via 6-pin M12.

PTZ camera

360-degree 4 MP HD PTZ camera with resolution ≥ 2560 × 1440, at least 1/2.8-inch progressive CMOS, color illumination ≤ 0.05 Lux, 30× optical zoom, 360-degree endless pan, tilt −20 to 90 degrees, at least 256 presets, IP66, embedded installation with no exposed wiring.

Control terminal

5.5-inch 1280 × 720 LCD, 450 nits, multi-touch, stereo speaker, light sensor, USB Type-C OTG, 100M Ethernet, GPS, 4 GB memory, 64 GB storage, 147.2 × 172.6 × 18.2 mm, about 270 g.

Environment

Control terminal operating temperature −20 to 70 °C, storage temperature −40 to 85 °C; starts within 25 seconds after ACC ignition.

Tell us your deployment scenario, required interfaces, software workflow, and local integration needs. Contact us
