Integrated Portable Intelligent Devices

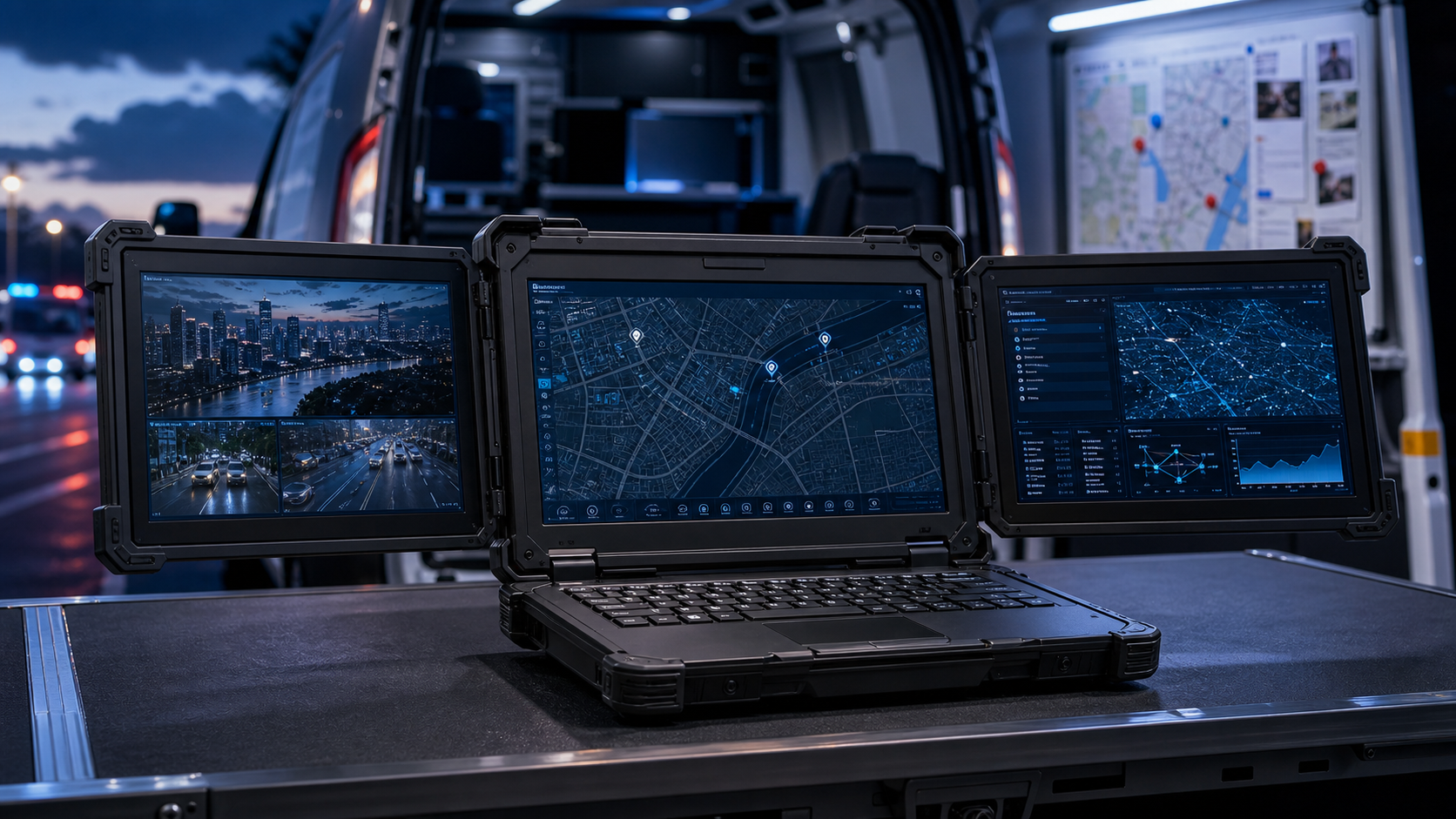

Fully Rugged Triple-Screen Portable Terminal

The 15.6-inch fully rugged triple-screen portable terminal supports Windows 7, Windows 10, and Linux operating systems. Designed for harsh environments, it is well suited for industrial, military, and other demanding applications.

Three 15.6-inch 1920 × 1080 anti-glare displaysSupport for Windows 7, Windows 10, and LinuxIntel Core i7 / i9 and AMD Ryzen AI Max options

Request a quote Request a white paper

Product overview

Equipped with a high-performance, low-power, wide-temperature motherboard and a high-capacity wide-temperature battery, the terminal delivers powerful computing performance and long battery life. HD high-brightness displays with anti-glare cover glass ensure clear visibility under complex lighting conditions.

Core features

Three 15.6-inch 1920 × 1080 anti-glare displays
Support for Windows 7, Windows 10, and Linux
Intel Core i7 / i9 and AMD Ryzen AI Max options
Customizable LAN, serial, USB, aviation connector, and integrated module options
High performance and long battery life: A high-performance wide-temperature motherboard supports MXM discrete graphics expansion, while a high-capacity wide-temperature battery and intelligent power management system ensure stable operation.
Clear display and visual comfort: Three 15.6-inch high-definition displays with anti-glare cover glass deliver clear images even under strong or complex lighting conditions.
Comprehensive ruggedization: Rigorous ruggedness, shock, and vibration tests plus low-temperature direct startup support harsh field and in-vehicle use.
Portability and expansion: Rich interfaces, customization support, fingerprint recognition, positioning, and security features facilitate mobile operations.

Technical specifications

Processor

Intel Core i7-11390H, 4 cores / 8 threads, 3.40 GHz; optional i7-6600U, i9-13900H, i9-12900H, AMD Ryzen AI Max+395 AI.

Operating system

Windows 7, Windows 10, and Linux.

Protection

IP54 / IP65.

Display

15.6-inch anti-glare protective screen; three 15.6-inch 1920 × 1080 displays.

Graphics

Intel UHD 630 / 750; optional MXM discrete graphics up to 16 GB, or 8 GB for 11th Gen and earlier platforms.

Memory and storage

Laptop DDR5 memory up to 196 GB supported; M.2 SSD up to 4 TB.

Wireless and positioning

Built-in Wi-Fi 802.11 b/g/n and Bluetooth 4.0HS, 2.4-5 GHz; optional 4G/5G full-network; optional built-in BeiDou + GPS.

Security

Optional built-in fingerprint encryption.

Battery

Operating time ≥ 2 hours; standby 120 hours, about 5 days.

Interfaces

3 × USB 3.0, 1 × USB 2.0, 2 × RJ45 gigabit, 2 × COM 232/422/485 software-adjustable, HDMI, headphone/mic combo, DC-in.

Customization

Multiple LAN / serial / USB options, aviation connector modification, and integrated functional modules.

Power and housing

19 V=7.89 A; CNC aluminum housing with silicone corners.

Dimensions and weight

400 × 295 × 82 mm ± 2 mm excluding feet and handles; weight < 10.5 kg.

Environment

Operating temperature −20 to 55 °C; storage temperature −35 to 60 °C; damp heat, vibration, and shock comply with GJB367 A-2001 / GJB150 A-2009.

Carrying case

Aluminum or plastic explosion-proof carrying case optional.

Tell us your deployment scenario, required interfaces, software workflow, and local integration needs. Contact us
