Industrial All-in-One Products

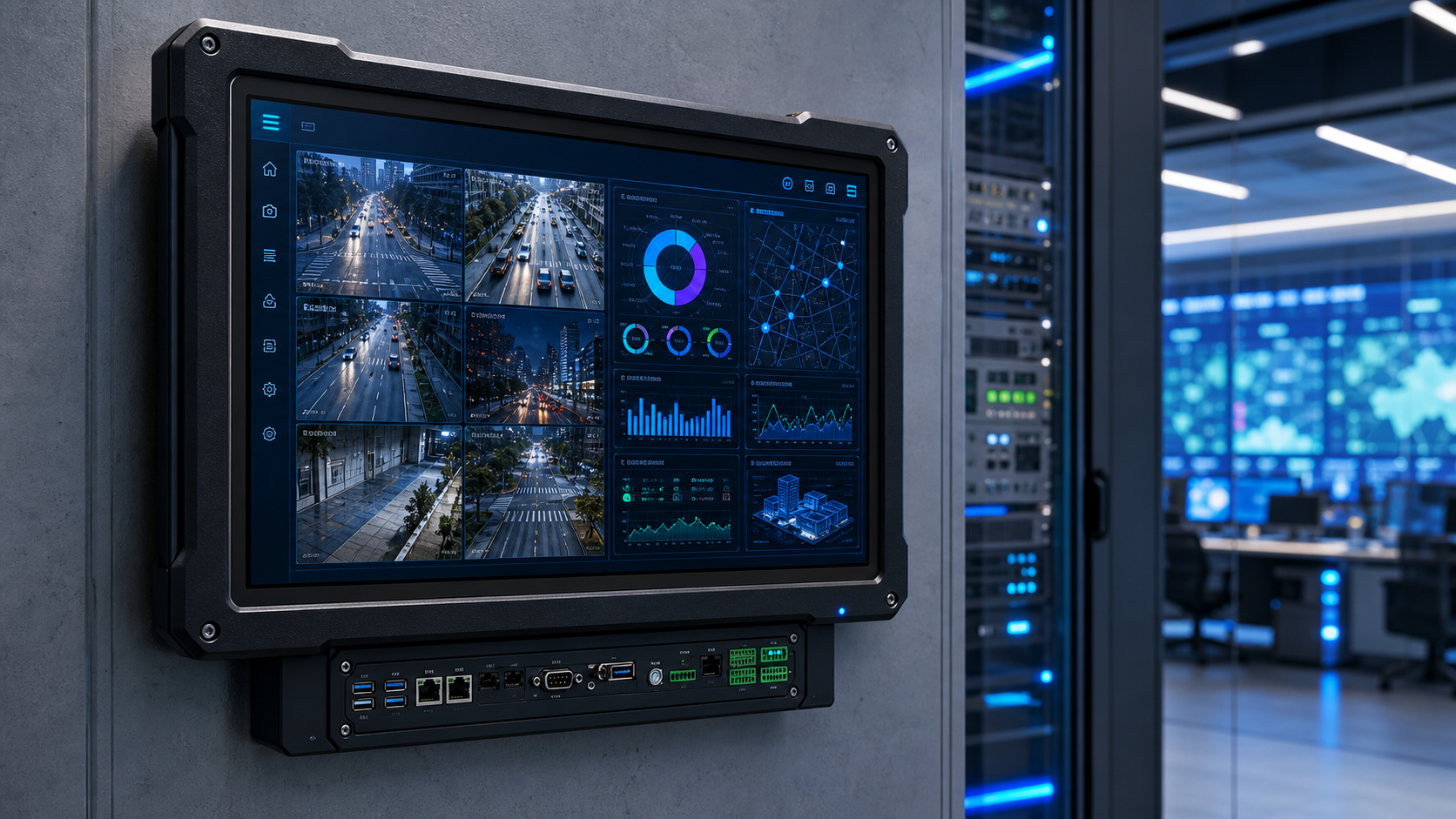

Industrial All-in-One PC

This visual interactive all-in-one device is powered by an Intel Core series high-performance processor platform and features large-capacity memory and a dual-SSD slot design, with rich interfaces for standard expansion requirements.

23.8-inch LCD with 10-point capacitive touchIntel i7-1255U / i5-1235U processor optionsDual M.2 SSD slots supporting 2 TB + 4 TB dual storage

Request a quote Request a white paper

Product overview

Reserved modular peripheral interfaces facilitate integration of industry-specific peripherals and functions. Optional 4G/5G connectivity, other wireless connectivity features, and RFID functionality are available. Wall-mount, desktop, and flush-mount installation support a wide range of application scenarios.

Core features

23.8-inch LCD with 10-point capacitive touch
Intel i7-1255U / i5-1235U processor options
Dual M.2 SSD slots supporting 2 TB + 4 TB dual storage
Optional 4G/5G, RFID, BeiDou/GPS, NFC, GPIO, and QR modules
Intel Core high-performance platform: High-performance Intel Core processors, large memory, and dual SSD slots support edge interaction and local application workloads.
Rich expansion interfaces: Standard and reserved interfaces support external devices, industry peripherals, and specialized module integration.
Wireless communication: Optional 4G/5G, Wi-Fi, Bluetooth, RFID, and GPS/BeiDou features support connected deployments.
Flexible mounting: Wall-mount, desktop, and flush-mount installation adapt to different site environments.

Technical specifications

Display

23.8-inch LCD, brightness ≥ 300 cd/m².

Optional modules

4G/5G, RFID, BeiDou/GPS optional.

Touch

Capacitive touchscreen / G+G, at least 10 touch points, glass thickness ≥ 2 mm, accuracy ≤± 1 mm and < 10%.

Processor

Intel i7-1255U, 10 cores / 12 threads, max turbo 4.7 GHz; Intel i5-1235U, 10 cores / 12 threads, max turbo 4.4 GHz.

Graphics

Intel Iris Xe Graphics.

Memory and storage

16 GB memory, up to 64 GB; M.2 SSD slots × 2; 2 TB + 4 TB dual storage.

Operating system

Ubuntu 22.04, Windows 10, and Windows 11.

Audio and camera

Realtek HD Audio; front 5 MP camera.

Cellular and network

2 x Gigabit Ethernet; 5G/4G reserved; Wi-Fi 802.11ac dual band; Bluetooth 5.2; GPS / BeiDou.

Interfaces

2 × USB 3.0, 2 × USB 2.0, USB Type-C, 2 × RJ45, HDMI, 4 × COM, audio, reserved SIM, DC-in; expandable SPI / NFC / GPIO / QR.

Controls and indicators

Status indicators, power button, and reset.

Dimensions and mounting

576 × 432 × 58 mm; VESA mount and desktop stand; wall-mount, desktop, and flush-mount installation.

Environment

Operating temperature −10 to 60 °C, humidity < 90% RH; storage temperature −40 to 70 °C.

Tell us your deployment scenario, required interfaces, software workflow, and local integration needs. Contact us
