Integrated Portable Intelligent Devices

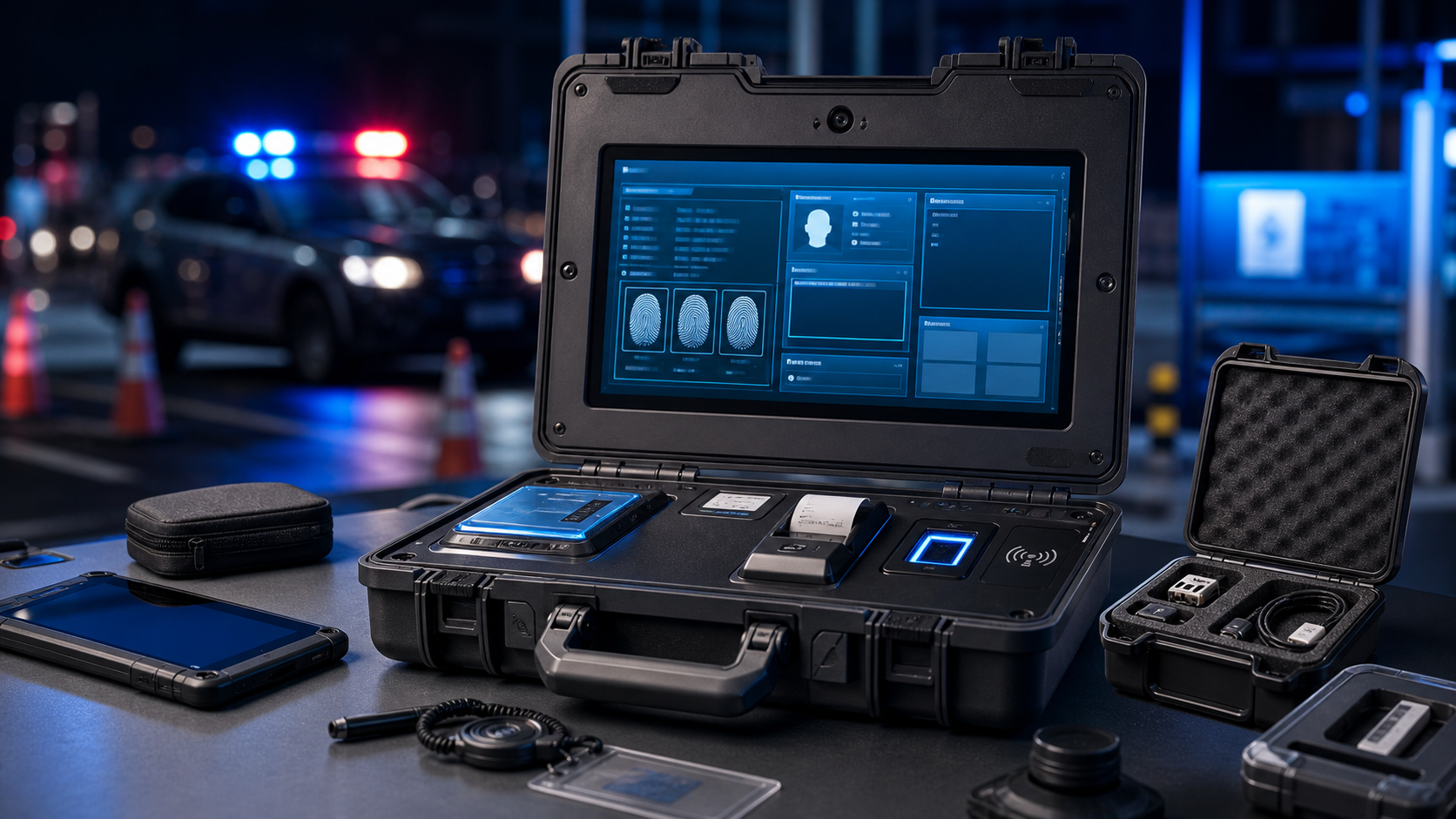

B6 Integrated Law Enforcement Terminal

The B6 Integrated Law Enforcement Terminal is built on a high-performance, low-power, wide-temperature mainboard and equipped with a high-capacity battery to ensure extended operating time.

Built-in color printing unit for mobile printingOptional card reader and fingerprint scanner for rapid information captureFront and rear HD cameras plus temperature/humidity sensor

Request a quote Request a white paper

Product overview

The terminal comes with a wireless keyboard and mouse, supports access to secure private networks, and features a built-in color printing unit. A wide range of expansion interfaces supports external devices, while the integrated HD camera and temperature/humidity sensor meet mobile law enforcement requirements.

Core features

Built-in color printing unit for mobile printing
Optional card reader and fingerprint scanner for rapid information capture
Front and rear HD cameras plus temperature/humidity sensor
Designed for mobile law enforcement, mobile office, and mobile information collection
High-performance integration: All-in-one design integrating synchronized audio and video recording with no perceptible delay, fingerprint collection, ID card information capture, 4G/5G wireless access, and color printing.
High expandability: Rich external interfaces include HDMI, audio input/output, RJ45 Ethernet port, COM port, and multiple USB expansion ports.
Long battery life: A high-performance dual-cell polymer battery supports up to 10 hours of continuous operation.

Technical specifications

Processor

Intel i7-10710U; Intel i5-6200U optional.

Mainboard BIOS security

The system can boot only from the internal drive, preventing startup from external USB devices or other external boot sources.

Operating system

Windows 7 or Windows 10 can be selected as a single operating system.

Protection

IP54.

Printing unit

Built-in ink tank printer, resolution ≥ 5760 × 1440 dpi, speed approx. 7 ipm black and 4 ipm color, max A4, yield 250 black / 200 color, waste ink replacement, built-in LCD, built-in battery with USB power, 20 sheets of 75 g/m² A4 paper.

Display and graphics

15.6-inch FHD IPS display, 1920 × 1080; Intel HD Graphics 520.

Memory and storage

DDR4 8 GB / 16 GB / 32 GB optional; 256 GB × 1 encrypted SSD, 480 GB × 1 encrypted SSD, or 480 GB × 2 encrypted SSD optional.

Input devices

Bluetooth 4.0 / 3.0 keyboard and wireless USB mouse.

Wireless and network

Cellular 4G/5G optional; Wi-Fi IEEE 802.11abgn/ac/d/e/i/h/w optional; Bluetooth Dual Mode 2.1-4.2 BLE optional; 100/1000 Mbps Ethernet optional.

Collection modules

A4 paper storage up to 30 sheets plus storage compartment; optional fingerprint recognition with 24.5 × 19 mm capture window, 15.5 × 18.5 mm effective area, 256 × 360 pixels, flat press, 500 DPI; optional built-in ID card reader.

Sensors and cameras

4th generation CMOSens temperature/humidity sensor with humidity ±3.0% RH and temperature ±0.3 °C; front and rear 2 MP HD cameras, 1080p at 30 fps, independently rotatable up/down.

Audio

High-sensitivity omnidirectional microphone and 4 Ω, 2 W speaker.

Battery and interfaces

11.4 V / 12000 mAh battery; USB 3.0 × 3, USB 2.0 × 4, HDMI × 1; 2.5 A, 220 V power.

Body and environment

Aluminum alloy CNC housing with silicone corners; 400 × 290 × 110 mm; approx. 8 kg; operating temperature −20 °C to 55 °C; storage temperature −35 °C to 60 °C.

Tell us your deployment scenario, required interfaces, software workflow, and local integration needs. Contact us
